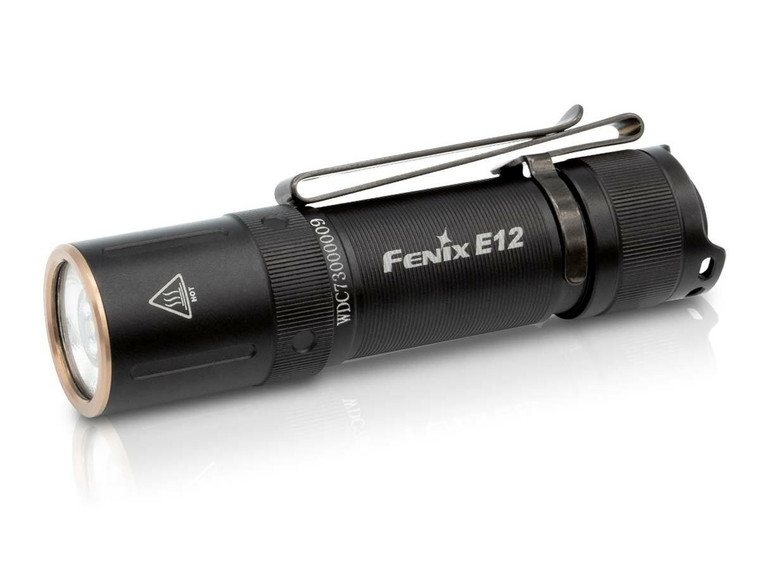

Fenix E12 V.20 Ultra Compact LED Flashlight, Black, 160 Lumens

The Fenix E12 V2.0 AA Flashlight emits an impressive maximum 160 lumens from an included single AA battery. Using an ultra-thin optical lens, this flashlight delivers a soft and balanced beam a max distance of 223ft (68m). Access three brightness levels with a tap of the tail switch. At only 3” long, this flashlight is a great everyday carry size, and with its two-position body clip, you can carry it as you want—even clip it to your hat and use it as a headlamp. This little flashlight is built tough with an IP68 dustproof and waterproof rating. It’s hard to beat the ease of powering your flashlight with one single AA battery. Super small and bright, the Fenix E12 V2.0 is a great upgrade for those looking for a AA powered EDC flashlight.

Additional Features of the E12 V2.0 AA Flashlight

• MATCH CA18 cool white LED with a lifespan of 50,000 hours.
• Included single AA battery, easy to find (Ni-MH/Alkaline).
• Automobile ultra-thin optical lens coating process.
• No standby current, safe and cost-efficient.
• One-handed operation with the single tail switch.
• Two-position body clip and tail standing capability for varying conditions.
• Made of durable A6061-T6 aluminum.
• Premium type HAIII hard-anodized anti-abrasive finish

Operating Instructions:

On/off for the E12 V2.0 AA Flashlight

Fully press the tail switch to turn on/off the light.

Output Selection

With the light switched on, tap the tail switch to cycle throughLow→Med→High.

Intelligent Memory Circuit

The light does not memorize the previously used output level, each time it is turned on, Low mode will be activated.

Battery Specifications

Battery Replacement

Unscrew the light tail and insert the battery with the anode side (+) towards the light head, then screw the light tailback on.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. To ensure normal use, the flashlight will not turn off automatically and will work till the battery runs out completely.

Usage and Maintenance of the E12 V2.0 AA Flashlight

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Unscrew the tail cap half a turn or take out the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: The battery needs replacing.
  Solution: Replace battery (Ensure batteryis inserted according to the manufacturer’s   specifications).
  B: The threads, PCB board contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don’t work, please contact your authorized distributor.

Warning

• This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone’s eyes.
• All information provided in this manual is subject to change without prior notice.
